Dirt King Fox 2.5 Smooth Body Shocks | DSC Remote Reservoir 4WD

$1,679.95

Up to 1” of Lift

Description

The 2.5” Fox OEM Factory Series rear smooth body shocks for the Chevy Silverado 2500 and GMC Sierra 2500 are direct bolt-on replacement shocks. These rear shocks are specifically designed to optimize off-road performance without compromising on-road handling. The shocks will allow for up to 1.0” of lift in the rear, and include all necessary hardware needed for installation.

 Specifications

  • Allows up to 1.0” of Lift

  • Optional DSC adjuster

  • Piggyback reservoir for increased fluid capacity

  • Precision bored 2.5” diameter shock body

  • Allow for up to 15% increase in rear wheel travel

  • Completely bolt in OEM replacement application

 What's Included

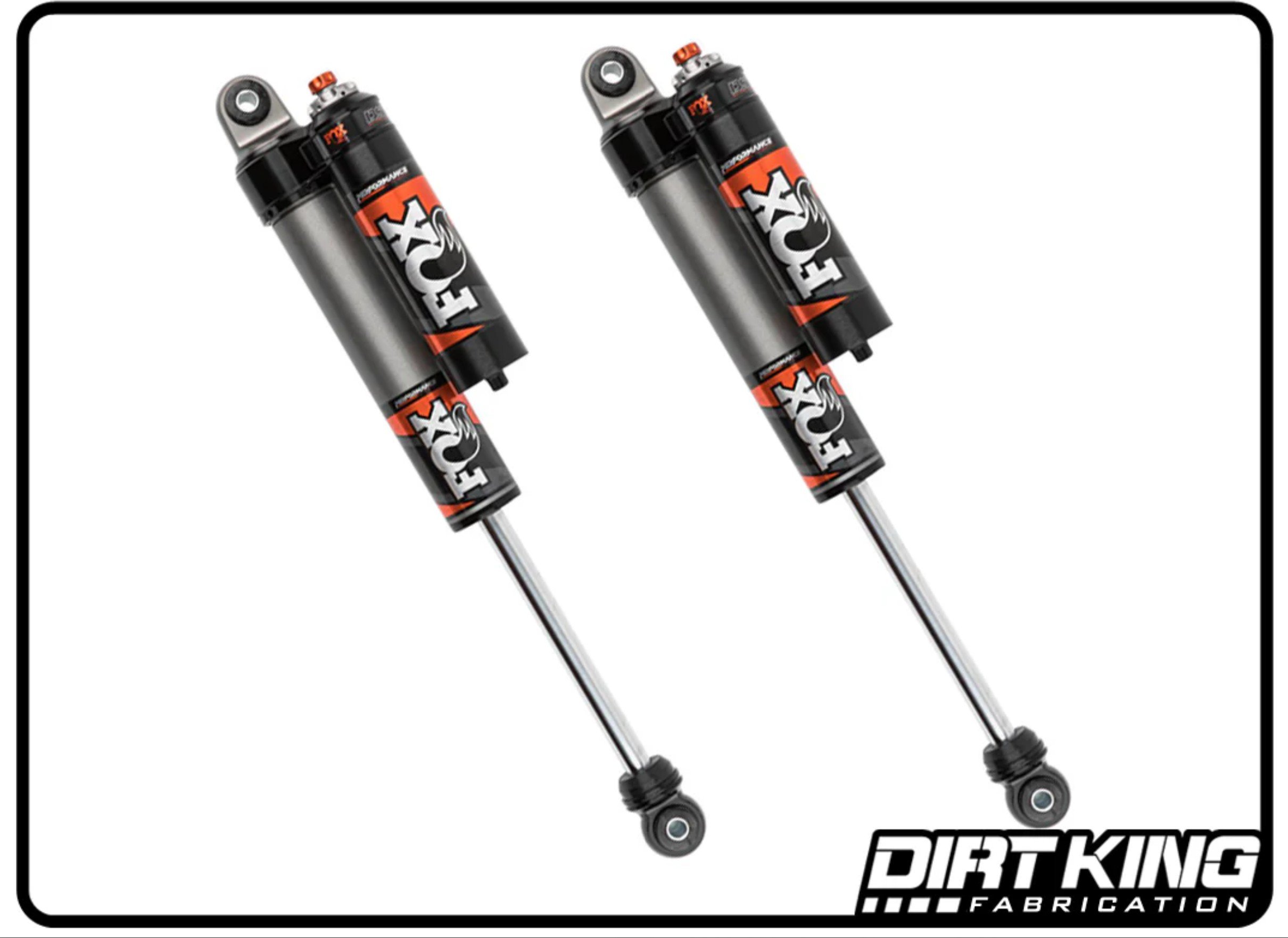

  • 2.5” Fox smooth body shocks w/ piggyback reservoirs

  • PTFE-lined, heat-treated, alloy steel spherical bearings

  • All necessary mounting hardware

  • Installation instructions

  Features

Body: 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time

Body Plating: Hard-anodized for a durable finish

External Reservoir: External reservoir design separates shock oil from the high-pressure nitrogen

Components: Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft: 7/8" hard chrome plated heat-treated alloy steel

Piston: Race-developed high-flow piston design

Valving: Application specific valving to maximize performance

Seals: Redundant sealing pack system main seal, wiper seal, scraper seal

Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Bearing: PTFE-lined, heat-treated, alloy steel spherical

Mounting: Direct replacement for stock and aftermarket lifts kits

Compatibility

2020-2025 Chevy Silverado 2500HD 4WD
2020-2025 GMC Sierra 2500HD 4WD
2020-2025 Chevy Silverado 3500HD 4WD
2020-2025 GMC Sierra 3500HD 4WD

Up to 1.5-2.5” of Lift

This product requires aftermarket upper control arms

Description

The 2.5” Fox OEM Factory Series front shocks for the Chevy Silverado 2500 and GMC Sierra 2500 are direct bolt-on replacement shocks intended for maximum performance. These shocks are specifically designed to optimize off-road performance without compromising on-road handling. The shocks are adjustable for up to 1.5"-2.5" of lift and include all necessary hardware needed for installation. These shocks require aftermarket upper control arms for the additional down travel.

 Specifications

For best performance the shocks should be set at mid-shaft or about 2" over stock height.

  • Allows up to 1.5"-2.5" of Lift | Must be used with aftermarket UCAs

  • Up to 25% increased wheel travel over stock

  • Extra ¾” of down travel

 What's Included

  • 2.5” Fox shocks w/ remote reservoirs

  • Reservoir mounts

  • All necessary hardware

  • Installation instructions

Features

Body: 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time

Body Plating: Hard-anodized for a durable finish

External Reservoir: External reservoir design separates shock oil from the high-pressure nitrogen

Components: Black-anodized, CNC-machined 6061-T6 billet aluminum

Spring: Application specific, adjustable 3.0 Eibach® racing springs

Shaft: 7/8" hard chrome plated heat-treated alloy steel

Piston: Race-developed high-flow piston design

Valving: Application specific valving to maximize performance

Seals: Redundant sealing pack system main seal, wiper seal, scraper seal

Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Bearing: PTFE-lined, heat-treated, alloy steel spherical

Mounting: Direct replacement for stock and aftermarket lifts kits

Compatibility

*Requires aftermarket upper control arms.

2020-2025 Chevy Silverado 2500HD 4WD
2020-2025 GMC Sierra 2500HD 4WD
2020-2025 Chevy Silverado 3500HD 4WD
2020-2025 GMC Sierra 3500HD 4WD

Please call for lead time.

Lift:

Up to 1” of Lift

Description

The 2.5” Fox OEM Factory Series rear smooth body shocks for the Chevy Silverado 2500 and GMC Sierra 2500 are direct bolt-on replacement shocks. These rear shocks are specifically designed to optimize off-road performance without compromising on-road handling. The shocks will allow for up to 1.0” of lift in the rear, and include all necessary hardware needed for installation.

 Specifications

  • Allows up to 1.0” of Lift

  • Optional DSC adjuster

  • Piggyback reservoir for increased fluid capacity

  • Precision bored 2.5” diameter shock body

  • Allow for up to 15% increase in rear wheel travel

  • Completely bolt in OEM replacement application

 What's Included

  • 2.5” Fox smooth body shocks w/ piggyback reservoirs

  • PTFE-lined, heat-treated, alloy steel spherical bearings

  • All necessary mounting hardware

  • Installation instructions

  Features

Body: 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time

Body Plating: Hard-anodized for a durable finish

External Reservoir: External reservoir design separates shock oil from the high-pressure nitrogen

Components: Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft: 7/8" hard chrome plated heat-treated alloy steel

Piston: Race-developed high-flow piston design

Valving: Application specific valving to maximize performance

Seals: Redundant sealing pack system main seal, wiper seal, scraper seal

Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Bearing: PTFE-lined, heat-treated, alloy steel spherical

Mounting: Direct replacement for stock and aftermarket lifts kits

Compatibility

2020-2025 Chevy Silverado 2500HD 4WD
2020-2025 GMC Sierra 2500HD 4WD
2020-2025 Chevy Silverado 3500HD 4WD
2020-2025 GMC Sierra 3500HD 4WD

Up to 1.5-2.5” of Lift

This product requires aftermarket upper control arms

Description

The 2.5” Fox OEM Factory Series front shocks for the Chevy Silverado 2500 and GMC Sierra 2500 are direct bolt-on replacement shocks intended for maximum performance. These shocks are specifically designed to optimize off-road performance without compromising on-road handling. The shocks are adjustable for up to 1.5"-2.5" of lift and include all necessary hardware needed for installation. These shocks require aftermarket upper control arms for the additional down travel.

 Specifications

For best performance the shocks should be set at mid-shaft or about 2" over stock height.

  • Allows up to 1.5"-2.5" of Lift | Must be used with aftermarket UCAs

  • Up to 25% increased wheel travel over stock

  • Extra ¾” of down travel

 What's Included

  • 2.5” Fox shocks w/ remote reservoirs

  • Reservoir mounts

  • All necessary hardware

  • Installation instructions

Features

Body: 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time

Body Plating: Hard-anodized for a durable finish

External Reservoir: External reservoir design separates shock oil from the high-pressure nitrogen

Components: Black-anodized, CNC-machined 6061-T6 billet aluminum

Spring: Application specific, adjustable 3.0 Eibach® racing springs

Shaft: 7/8" hard chrome plated heat-treated alloy steel

Piston: Race-developed high-flow piston design

Valving: Application specific valving to maximize performance

Seals: Redundant sealing pack system main seal, wiper seal, scraper seal

Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures

Bearing: PTFE-lined, heat-treated, alloy steel spherical

Mounting: Direct replacement for stock and aftermarket lifts kits

Compatibility

*Requires aftermarket upper control arms.

2020-2025 Chevy Silverado 2500HD 4WD
2020-2025 GMC Sierra 2500HD 4WD
2020-2025 Chevy Silverado 3500HD 4WD
2020-2025 GMC Sierra 3500HD 4WD

Please call for lead time.

Disclaimer

All products sold or manufactured by Dirt King are intended for off-road use only. Our products are strictly engineered and tested and are not to be modified from their original design in any way. Welding should always be done at a qualified and certified facility only. Customer assumes all liability in assuring that parts are installed correctly, maintained, and not modified or altered in any way. Dirt King is not responsible or liable for any accidents, injuries, or deaths that may occur from the use of any products offered. Suspension modifications may change the dynamics and stability characteristics of the vehicle. Ensuring prompt wheel alignment and ADAS recalibration after suspension modifications is critical and the sole responsibility of the customer.
