Overview
Off-road Factory Race Series bump stops were developed with top off-road racing teams to provide precise control of the last few inches of suspension travel. By applying our race-proven damping technology in a purpose-built, stand-alone component, you can use every bit of suspension travel without harsh bottoming.
The built-in FOX Air Valve (FAV) Valve allows precise nitrogen charge adjustments to provide a wide range of bottoming control. The durable construction and replaceable Delrin® strike pad are built to take the abuse while providing predictable and quiet operation.
Manufacture: Fox

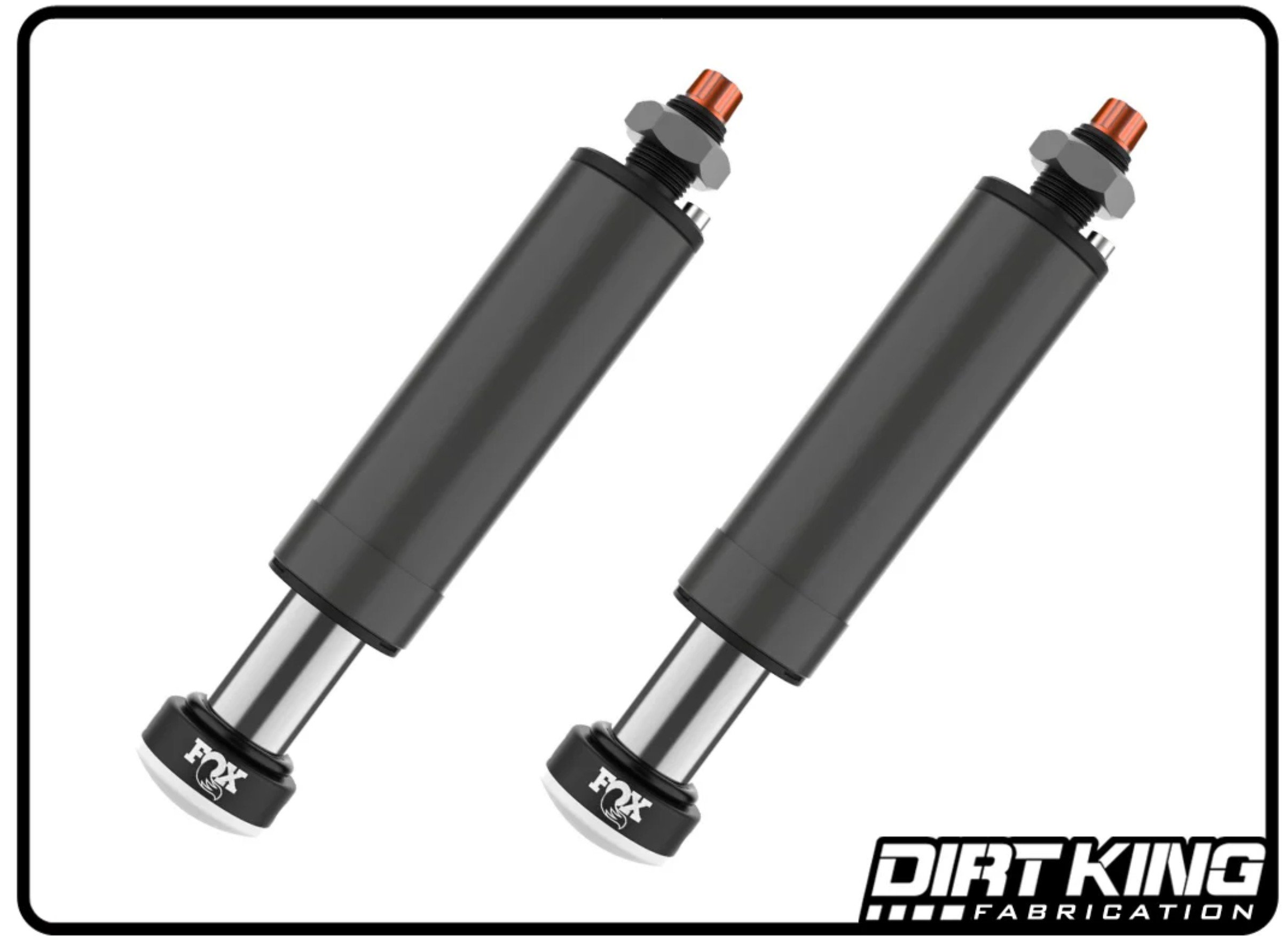

2 Stem Mount Fox Bump Stops
Body: Smooth bore and honed seamless steel
Body Plating: Zinc plated and clear coated for a long lasting finish
Components: Black anodized, CNC machined 6061-T6 billet aluminum
Valving: Tunable, velocity sensitive deburred valve shims
Seals: Redundant sealing pack system, main seal, wiper seal, scraper seal
Pad: Replaceable Delrin® strike pad
Shafts: Hard chromed 4130 steel
Options: Custom compression and rebound valving available (Add -1 to end of part number)
Adjustments: Nitrogen Pressure
Extended: 9.740
Compressed: 7.700
Travel: 2.040
Top Mount: Eyelet
Bottom Mount: Eyelet
Reservoir: Emulsion
Valving: STANDARD
Universal
