Dirt King Colorado/Canyon Long Travel Kit

$3,499.00

Overview

 Description

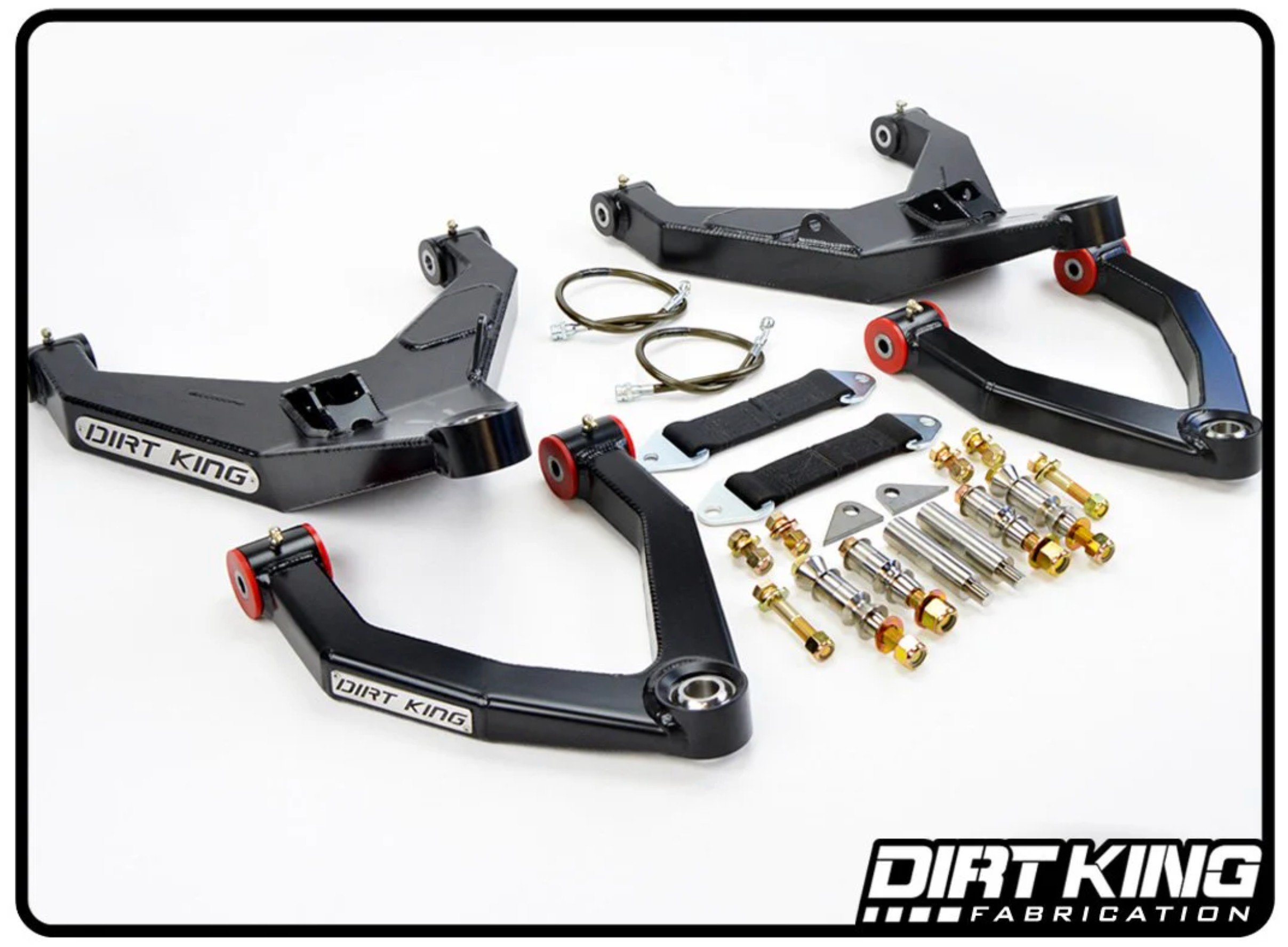

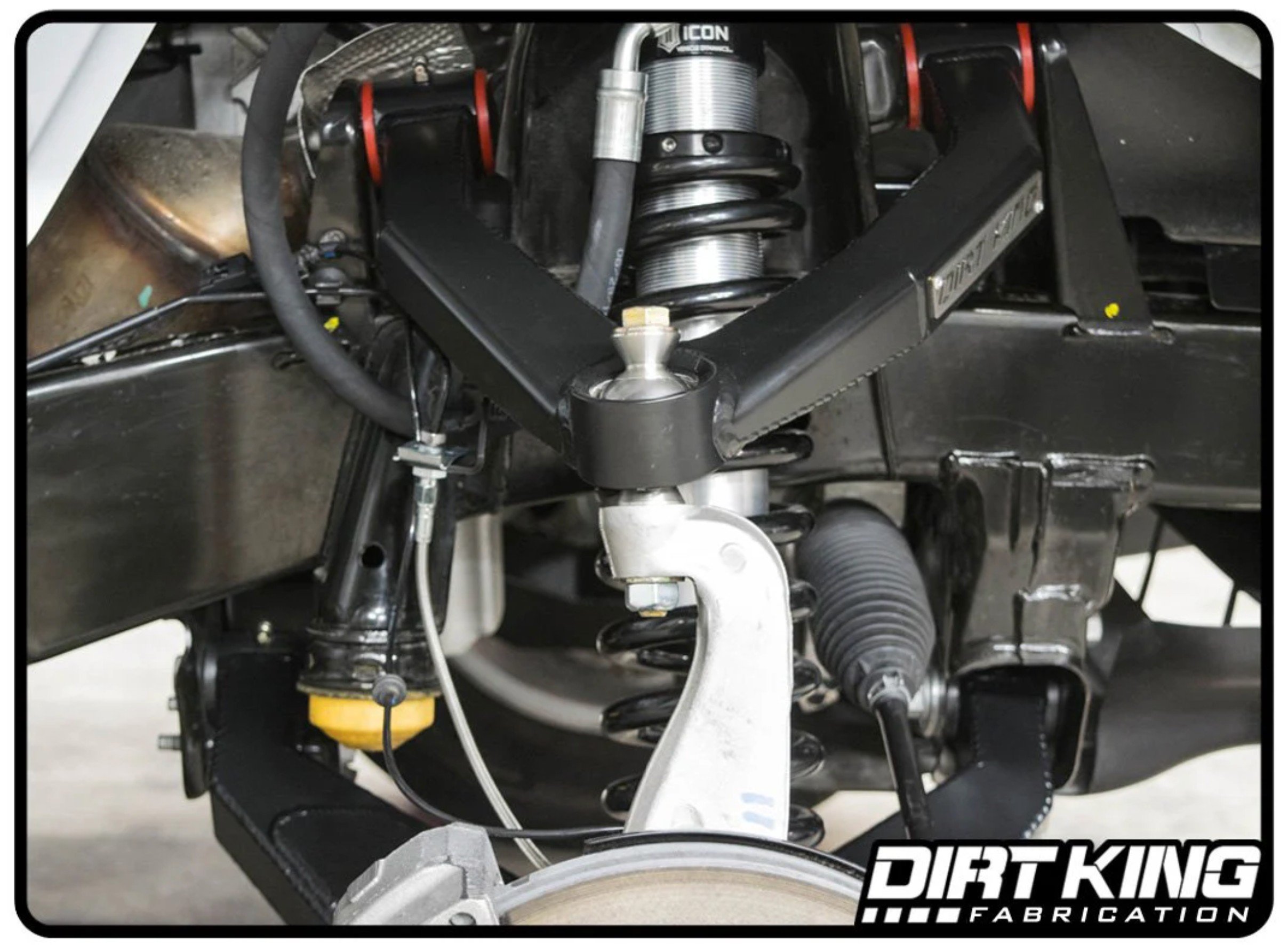

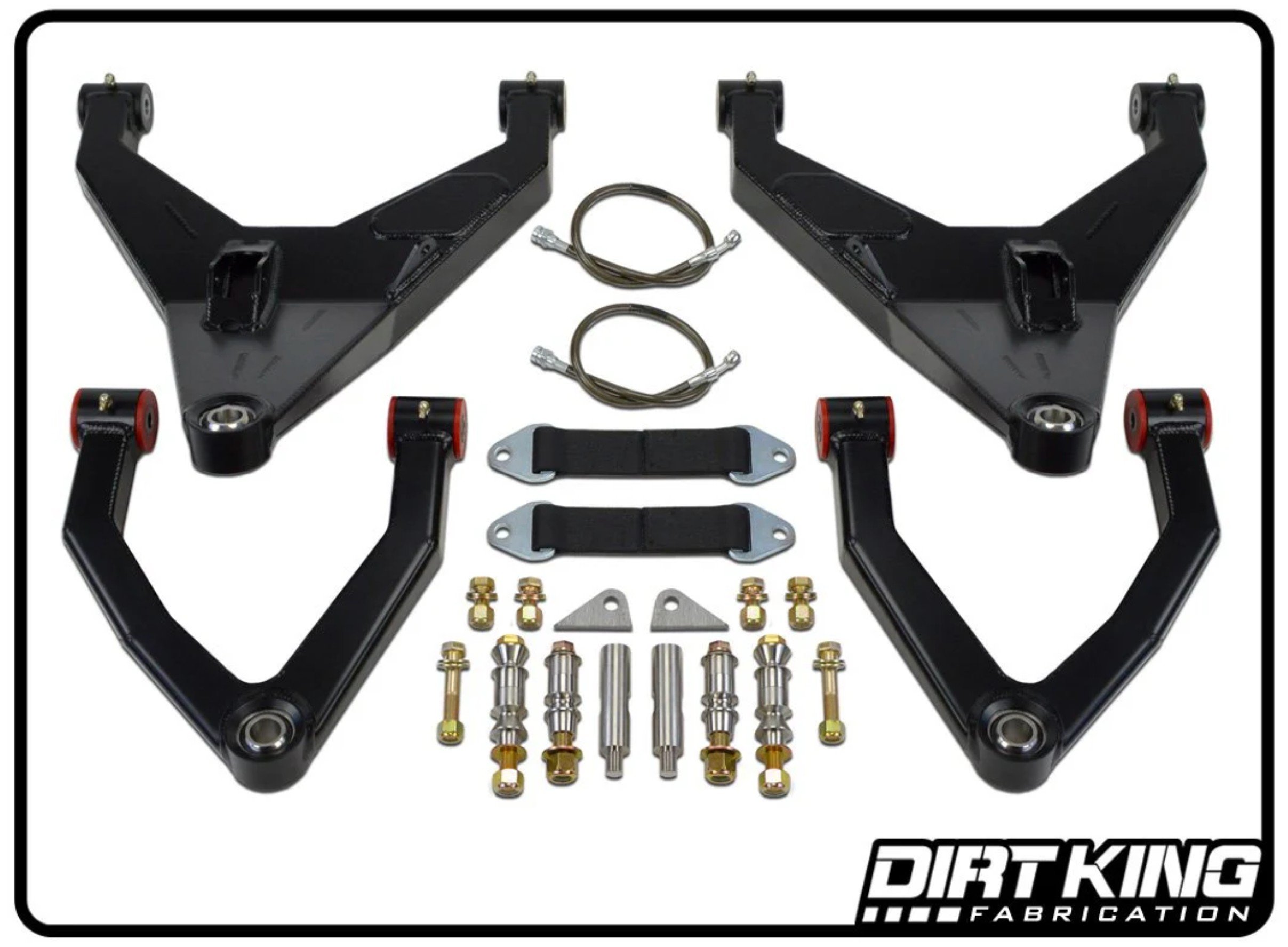

The Dirt King long travel kit was developed to drastically improve the vehicles off-road handling without compromising its day to day driving characteristics. This suspension system allows for 13.5” of travel and accepts up to a 35” tire. Our upper and lower arms are designed with 1” stainless steel uniballs for the outer pivots instead of ball joints for strength and increased articulation. This kit is CAD designed, thoroughly tested, and 100% made in America resulting in a product we’re proud to put our name on!

Specifications

  • Wheel Travel: 13.5”

  • Amount of Lift: 0-4”

  • Track Width: 3.5” wider per side

  • Maximum Tire Size: 35”

  • Maximum Backspacing: 4.75”

  • Minimum Rim Size: 16”

  • Coil over Shock Size: 2.5” x 8” (view spec sheet)

  • Bump Stop Size: 2.0” x 2.0” (view spec sheet)

Wheel Travel
In order to achieve 13.5” of travel the factory bump stop must be cut off. The kit allows for 12.5” of travel without removing the bump stop.

Tire Info
When using 35” tires with this kit modifications to the wheel wells are required. The firewall pinch weld will need to be folded over for clearance. The upper wheel well will also need to be modified to avoid contact at full bump.

Features

  • Bolt on application, minimal modifications required

  • Utilizes Probearing bearings

  • 4130 chromoly uniball cups

  • Polyurethane bushings for the UCA’s

  • Delrin bushings for the LCA’s

  • Zinc plated inner bushing sleeves

  • Grease fittings for easy servicing

  • 3/16" and 1/8” boxed plate construction

  • Internally ribbed with extrusions for weight reduction

  • Bump stop plating

  • Limit strap tabbing

Compatibility

2015-2022 Chevy Colorado 2WD
2015-2022 GMC Canyon 2WD
*Please contact us if you plan on installing this kit with lift spindles or a bracket lift.
*Front fiberglass required.

Overview

 Description

The Dirt King long travel kit was developed to drastically improve the vehicles off-road handling without compromising its day to day driving characteristics. This suspension system allows for 13.5” of travel and accepts up to a 35” tire. Our upper and lower arms are designed with 1” stainless steel uniballs for the outer pivots instead of ball joints for strength and increased articulation. This kit is CAD designed, thoroughly tested, and 100% made in America resulting in a product we’re proud to put our name on!

Specifications

  • Wheel Travel: 13.5”

  • Amount of Lift: 0-4”

  • Track Width: 3.5” wider per side

  • Maximum Tire Size: 35”

  • Maximum Backspacing: 4.75”

  • Minimum Rim Size: 16”

  • Coil over Shock Size: 2.5” x 8” (view spec sheet)

  • Bump Stop Size: 2.0” x 2.0” (view spec sheet)

Wheel Travel
In order to achieve 13.5” of travel the factory bump stop must be cut off. The kit allows for 12.5” of travel without removing the bump stop.

Tire Info
When using 35” tires with this kit modifications to the wheel wells are required. The firewall pinch weld will need to be folded over for clearance. The upper wheel well will also need to be modified to avoid contact at full bump.

Features

  • Bolt on application, minimal modifications required

  • Utilizes Probearing bearings

  • 4130 chromoly uniball cups

  • Polyurethane bushings for the UCA’s

  • Delrin bushings for the LCA’s

  • Zinc plated inner bushing sleeves

  • Grease fittings for easy servicing

  • 3/16" and 1/8” boxed plate construction

  • Internally ribbed with extrusions for weight reduction

  • Bump stop plating

  • Limit strap tabbing

Compatibility

2015-2022 Chevy Colorado 2WD
2015-2022 GMC Canyon 2WD
*Please contact us if you plan on installing this kit with lift spindles or a bracket lift.
*Front fiberglass required.

Disclaimer

All products sold or manufactured by Dirt King are intended for off-road use only. Our products are strictly engineered and tested and are not to be modified from their original design in any way. Welding should always be done at a qualified and certified facility only. Customer assumes all liability in assuring that parts are installed correctly, maintained, and not modified or altered in any way. Dirt King is not responsible or liable for any accidents, injuries, or deaths that may occur from the use of any products offered. Suspension modifications may change the dynamics and stability characteristics of the vehicle. Ensuring prompt wheel alignment and ADAS recalibration after suspension modifications is critical and the sole responsibility of the customer.
